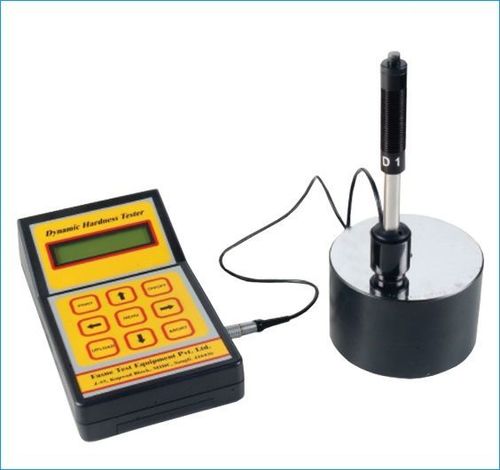

Portable Hardness Tester-II

Product Description

Die cavity of molds.

Bearings and other parts.

Failure analysis of pressure vessel, steam generator and other equipment.

Heavy work piece.

The installed machinery and permanently assembled parts.

Material identification in the warehouse of metallic materials.

Rapid testing in large range and multi-measuring areas for large-scale work piece.

Specifications

Measuring range: HLD (170-960), HRC (17.9-69.5, HB (19-683), HV (80-1042), HS (30.6-102.6), HRA (59.1-88), HRB (13.5-101.7).

Measuring direction: 360

Battery pack : 6VNI-MH

Battery charger : 9V/500mA

Communication interface : USB2.0

Dimensions : 210x85x45mm (host)

Weight : about 0.6kg (host)

Portable Hardness Tester A

Large screen (128x64), showing all functions and parameters.

Test at any angle, even upside down.

Wide measuring range. it can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and strength values immediately.

Seven impact devices are available for special application. Automatically identify the type of impact devices

Large capacity memory could store 600 groups information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.

Battery information indicates the rest capacity of the battery and the charge status.

User Calibration function.

USB port with the PC humanity multi-functions data proceeding software.

Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

Auto power off to save energy.
